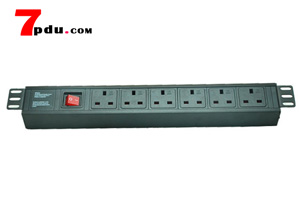

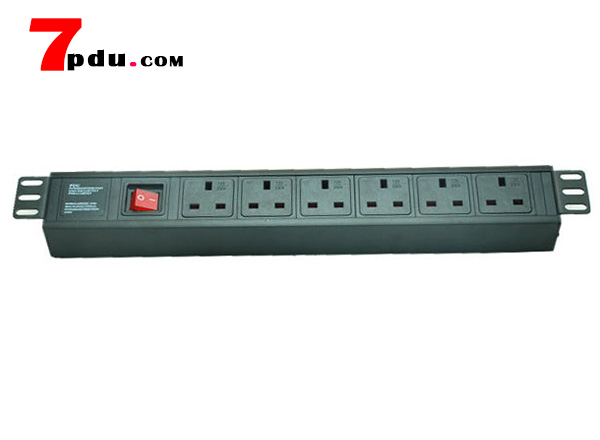

1.5U 6WAYS UK type PDU with switch

we are the manufacturer&factory.we can make the PDU for every  customers'  need,such as the output type,the number of sockets and the function modular.

19" 1.5U British Power distribution unit(PDU)

1)Size:19" 1.5U  482.6*44.4*62mm

2)Color: black

3)Number of sockets:6

4)Material:Uninflammable PC module, Aluminium alloy shell

5)Certificate: CE,RoHS

6)Protection:None

7)Control: double breaker Switch

Input characteristics

Rated input voltage

250VAC

Cable specification

H05VV-F3G 1.5mm^2

Type of plug

BS1363 13A plug

Cable length

2m

Max input current

13A

Output characteristics

Output quantity

6 ways

Rating output voltage

250VAC

Max output current

13A

Max output power

3.5KW

Functions

Control

double breaker switch

Protection

None

Size

Product size

LXWXH=482.6X44.4X62mm (19 inch)

Mounting length

482.6mm

Test items

hi-pot test

PASS

Grounding

PASS

IR

PASS

Product color& material

Product color

black

Shell material

Aluminum alloy

Plastic flame retardant rating

UL94V-0 grade

Mounting

Mounting method

Horizontal installation

Packing

Standard export packing
